ADOT ASR-100 Subnet Router

The ASR-100 is a subnet router, it is not designed to replace your existing router, but instead to sit along side it.

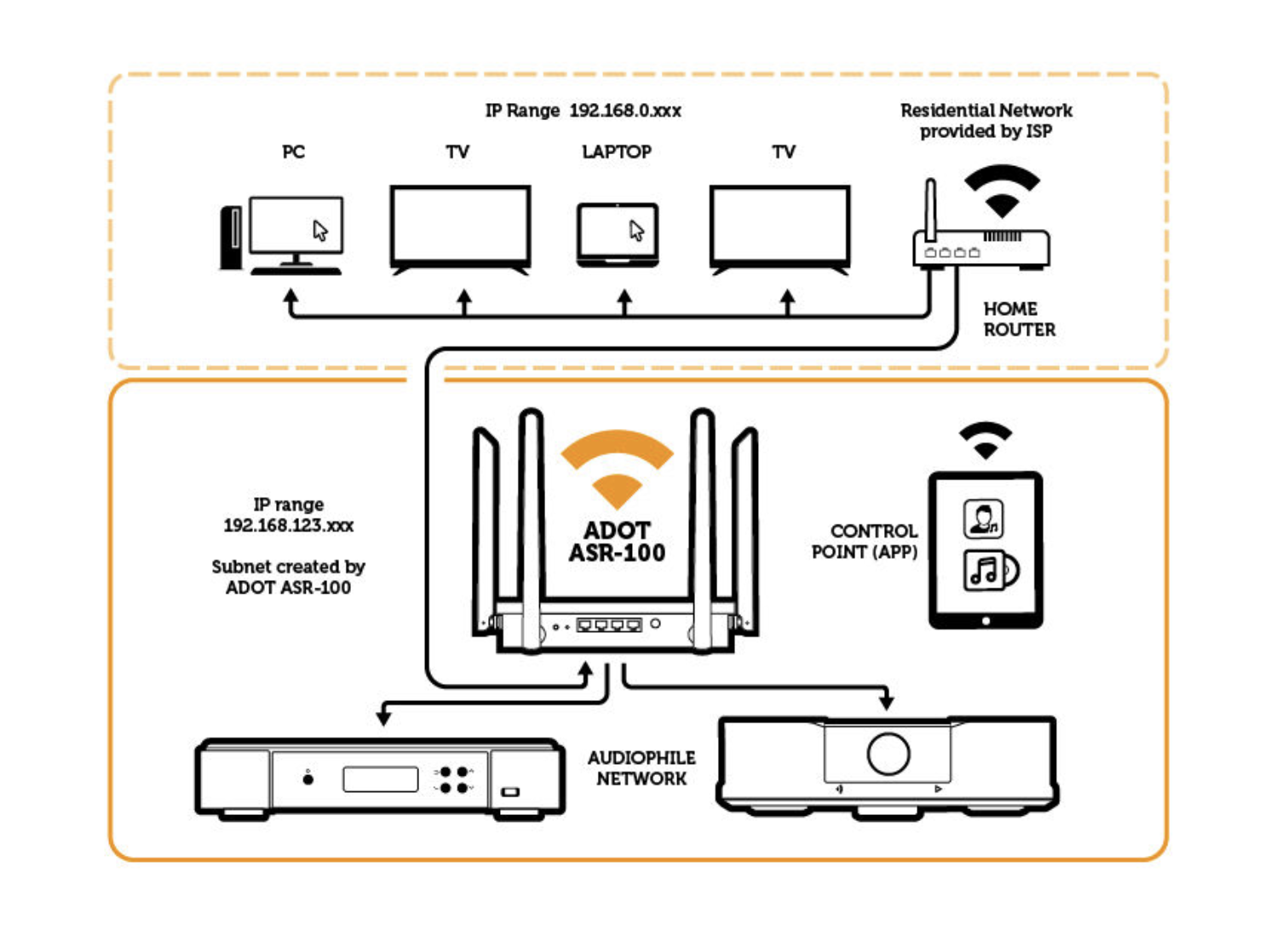

Any audio components that either stream music or playback music via UPnP, or an existing network switch like a Melco connect to the ASR-100 instead of your existing router. The ASR-100 creates a dedicated subnet network, isolated from all of the other network activity in your home, so no more network conflicts disturbing your listening. Your hi-fi will no longer be disturbed or polluted by other network traffic, countless wi-fi devices like access points, printers, smart plugs, smart lights, smart speakers and other hard wired devices like games consoles or TV’s all have a negative impact on the ability of their network.

Most people don’t realise or even acknowledge that is a problem, but once you remove it from play, what it does is quite obvious.

The ASR-100 subnet router also eliminates all network variables and configuration – it just works!

ADOT have optimised the ASR-100 for music streaming and also UPnP playback and it’s performance can be further improved by the use of a better power supply.

• Subnet: Dedicated audio subnet, isolated from other home network activity
• Protocols: Optimised UPnP and DLNA for reliable audio device discovery
• Wi-Fi: Provides an ADOT MUSIC wireless network for control devices
• Operating Modes: Connected to an existing home network, or fully standalone and isolated
• Supported Devices: Streamers, music stores, control app tablet or phone, backup storage, ROON Core sources
• Compatibility: Works alongside ADOT digital optical products and audiophile data switches such as DELA (Melco)
