Wadax Studio Player

SKU:

HomeProductsWadax Studio Player

Wadax

Wadax Studio Player

  • Wadax Studio Player
  • CD / SACD Player
  • Network Streamer
  • Qobuz Connect / Tidal Connect / Spotify Connect
  • Roon Ready

£38,500.00

Enquire now

The Audio Therapy take...

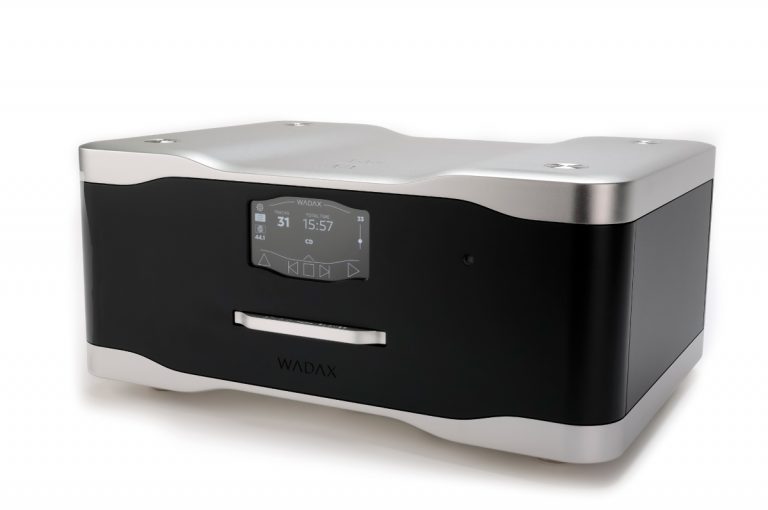

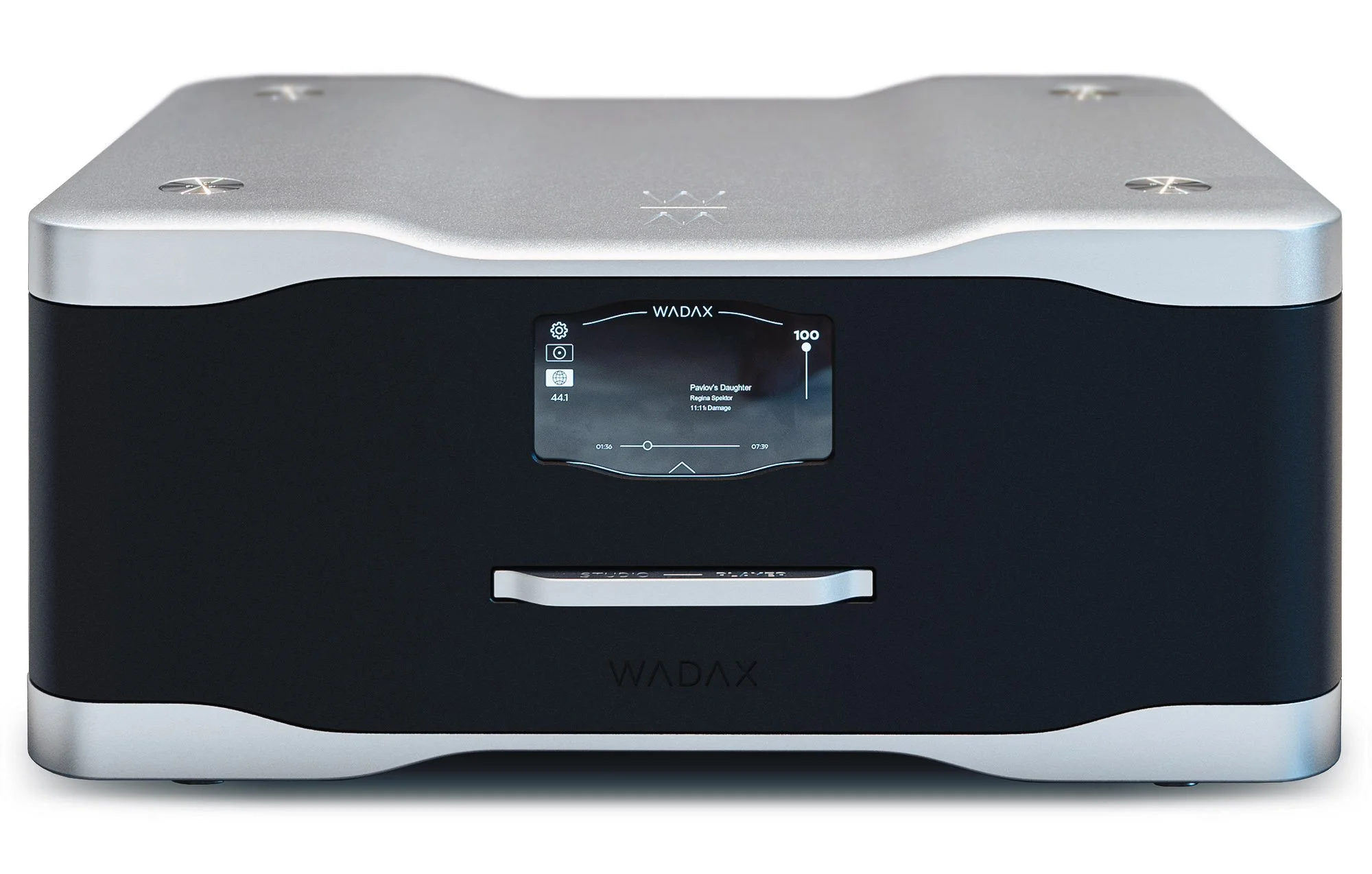

The Wadax Studio Player is the ultimate one box source component, it was designed and conceived as a more accessible version of their flagship Atlantis Reference System. It features a significant amount of technology and a large slice of performance which has been passed down to the Studio Player

The Studio Player is the Wadax ‘entry level’ model and it possesses an exhaustive feature set offering CD and SACD playback plus Network Streaming with services that include Qobuz Connect, Tidal Connect and Spotify Connect. It is also a Roon Ready device and fully supports UPnP so if you have a large digital library archived on a Melco you can allow your files access to the famed Wadax performance.

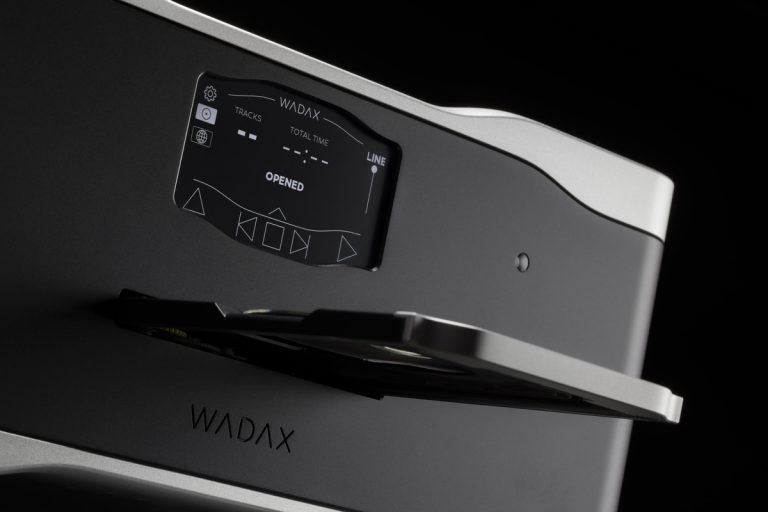

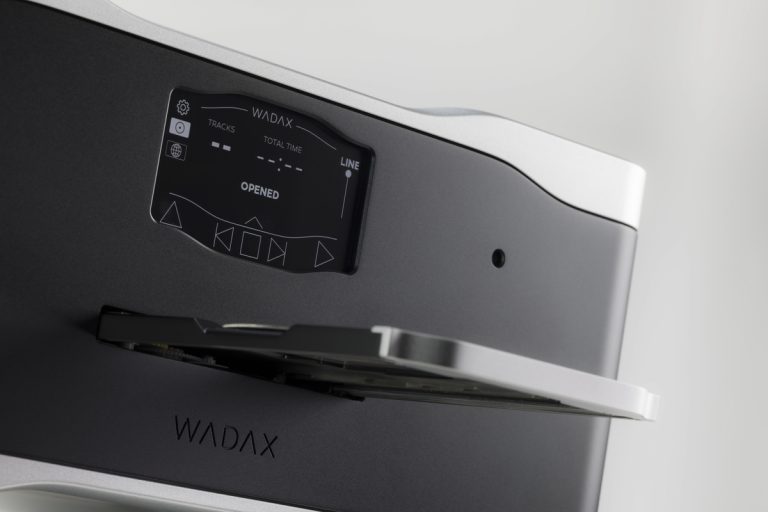

Via the 5 inch touchscreen you also have adjustable output levels and output impedance to fine tune the performance to your system.

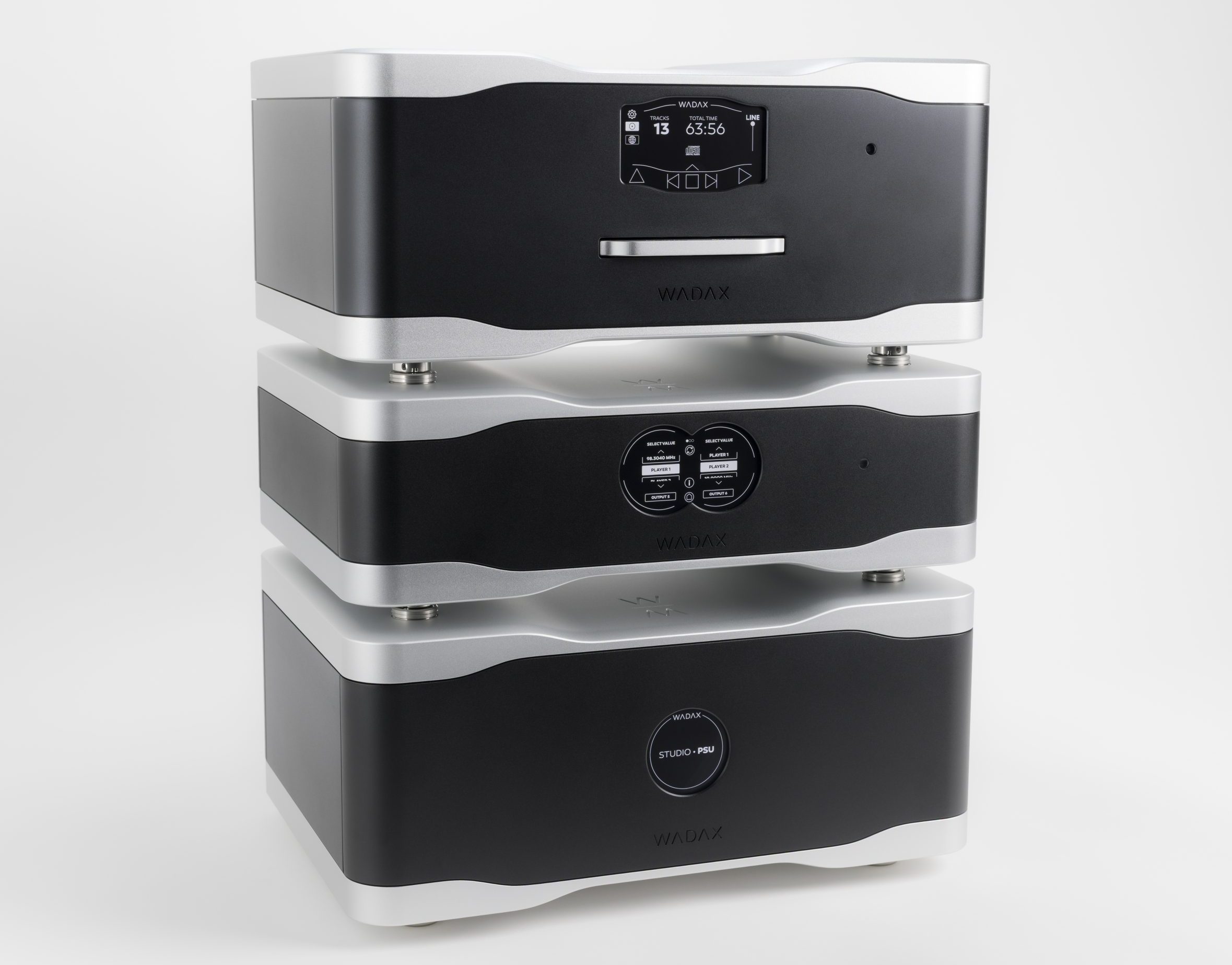

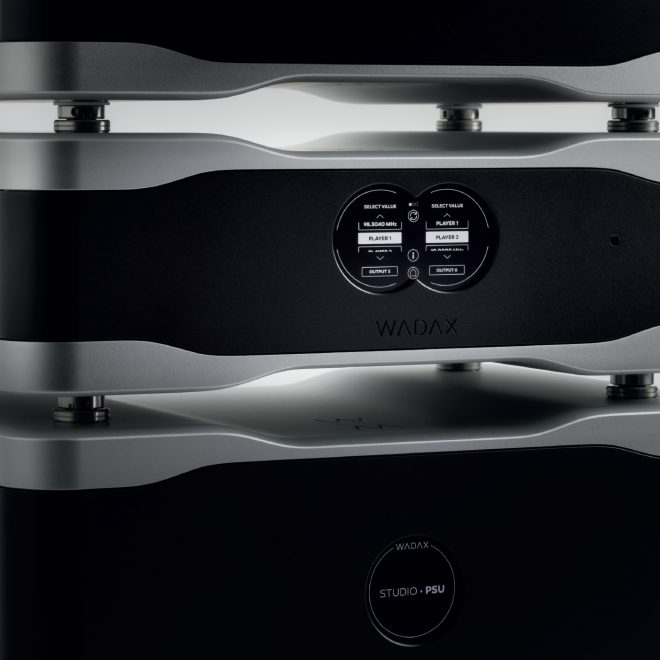

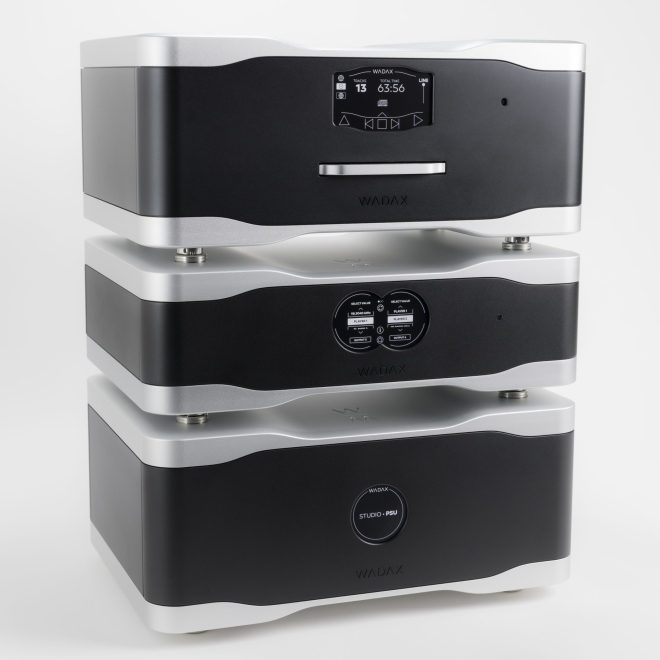

The Studio Player redefines what is possible from a single box at this sort of price point, but it doesn’t end there. Studio Player performance can be dramatically enhanced even further with the addition of 2 further models that Wadax released in the summer of 2025, the Studio Clock and the Studio Power Supply, plus the optional Akasa DC Studio Cable

You can add these additional models to the Studio Player in whichever order you prefer. You can do one or the other, or both depending on budget and preference.

The Studio Player utilises what is best descbribed as a fully modular architecture and was designed with expansion in mind, for the DAC board and analogue output stage can easily be swapped out by the end user as and when updates become available, this was previewed in Vienna at the High End Show with the launch of the upcoming Studio DAC and Studio Transport. If you look at the image of the rear of the unit you can see the removable modules.

Let’s make no mistake the Studio Player is a lot money, but it is an incredibly significant product and offers unrivalled performance and flexibility.

Studio • Player in numbers:

The design of the chassis is critical and has a major influence in the final performance. It’s an extremely complex design and each unit is made of 620 custom machined parts and a total of 14 different materials and alloys have been employed to manage resonance and vibration channeling.

• ​40 individual printed circuit boards.
• More than 4500 discrete parts.
• Dual-differential musIC 3 ​fixed point 128-bit-feed-forward error correction process.
• Fully balanced, dual mono design with complete physical and electrical separation of left and right channels​ (digital and analog).
• Digital circuitry time aligned to 100ps.
• 0.5uV of total rail noise (1Hz-100KHz): ultra sophisticated power supply with distributed regulation topology.
• 30 local regulation stages, 5 stages of DC regulation.
• User-adjustable gain and output impedance.

Product specifications...

Dimensions:

48 cm (Width) x 35 cm (Depth) x 20.4 cm (Height)

Remote Support:

Software Upgradeable over the Internet (minimum 20Mbps connection required)

Output Level:

1V, 2V, 4V

Output Impedance:

0.4, 7.4, 7.5, 8.2, 8.3, 8.7, 8.82, 9.84, 10, 28.57, 30, 46.15, 50, 66.67, 75, 600 ohms

Connections:

1 Wadax Akasa DC socket (for the optional external Power Supply – Studio PSU), 2 BNC input sockets (for the optional external clock – Studio Clock), 1 Ethernet Socket, 1 pair XLR Analogue Outputs

Digital Ouputs:

1 x SPDIF RCA (32KHz-192KHz, 16-24 bits), 1 x SPDIF BNC (32KHz-192KHz, 16-24 bits), 1 x AES-EBU (32KHz-192KHz, 16-24 bits)

Supported Disc Standards:

Red Book (CD), Scarlett Book (SACD)

Supported Streaming Services:

Spotify Connect, Tidal Connect, Qobuz Connect, Roon Ready, Audirvana, UPnP Certifications for other services in progress.

User Interface:

5 inch capacitive touch full-colour display 800 × 480

Weight

Net Weight 32Kg, Gross Weight including packaging / pallet 55Kg

Additional information

Product specifications...

Dimensions:

48 cm (Width) x 35 cm (Depth) x 20.4 cm (Height)

Remote Support:

Software Upgradeable over the Internet (minimum 20Mbps connection required)

Output Level:

1V, 2V, 4V

Output Impedance:

0.4, 7.4, 7.5, 8.2, 8.3, 8.7, 8.82, 9.84, 10, 28.57, 30, 46.15, 50, 66.67, 75, 600 ohms

Connections:

1 Wadax Akasa DC socket (for the optional external Power Supply – Studio PSU), 2 BNC input sockets (for the optional external clock – Studio Clock), 1 Ethernet Socket, 1 pair XLR Analogue Outputs

Digital Ouputs:

1 x SPDIF RCA (32KHz-192KHz, 16-24 bits), 1 x SPDIF BNC (32KHz-192KHz, 16-24 bits), 1 x AES-EBU (32KHz-192KHz, 16-24 bits)

Supported Disc Standards:

Red Book (CD), Scarlett Book (SACD)

Supported Streaming Services:

Spotify Connect, Tidal Connect, Qobuz Connect, Roon Ready, Audirvana, UPnP Certifications for other services in progress.

User Interface:

5 inch capacitive touch full-colour display 800 × 480

Weight

Net Weight 32Kg, Gross Weight including packaging / pallet 55Kg
